Hammer: Multipurpose Container Based Hanger

A protected area based on fast, modular construction using strengthened, inert materials filled sections. Provides effective protection from mortar shells, rockets and more.

Design can be configured to either protect soldiers and civilians or to protect command systems and vital vehicles and equipment.

PATENT PENDING
Cat. No. BMFR-066

Configuration to protect personnel

Fortified structure with a wide opening for fast and easy construction designed to protect troops, civilians, vehicles and equipment. The structure is constructed using fortified, elements filled with an inert material (dirt / sand / concrete).

The area of the basic fortified structure is approximately 84 SqM. (net) and can contain some 366 soldiers and their equipment for a short period or 168 soldiers for longer periods.

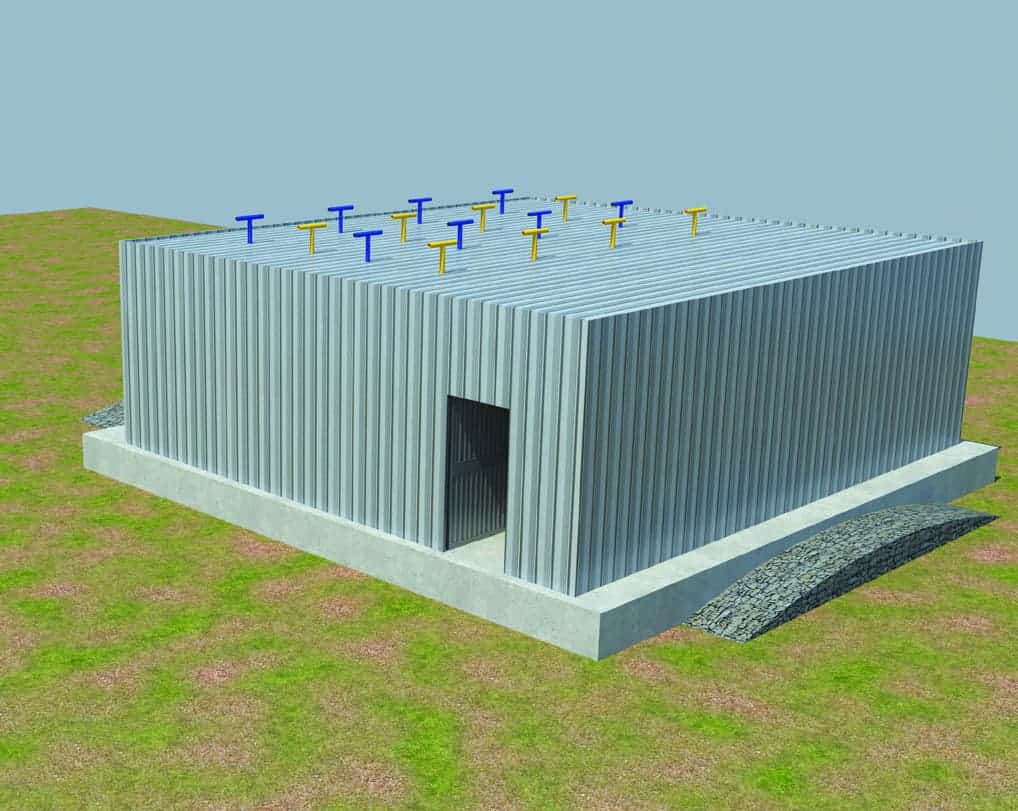

Hammer, a Security Product by Mifram: Designed to protect soldiers and civiliansDesigned to protect soldiers and civilians
Hammer, a Security Product by Mifram: Filling elements with sand with mechanical equipment via the roof openingFilling elements with sand with mechanical equipment via the roof opening
Hammer, a Security Product by Mifram: Placing roof sections, connecting and closing roofPlacing roof sections, connecting and closing roof
Hammer, a Security Product by Mifram: Filling roof sections with sand or concrete via roof openingsFilling roof sections with sand or concrete via roof openings
Hammer, a Security Product by Mifram: Larger hanger version designed for short term stay for up to 1000 soldiers with equipment. Includes barracks and sanitation facilitiesLarger hanger version designed for short term stay for up to 1000 soldiers with equipment. Includes barracks and sanitation facilities

Configuration to protect command systems, vital vehicles & equipment

Fortified structure with a wide opening for fast and easy construction designed to protect troops, civilians, vehicles and equipment. The structure is constructed using fortified, elements filled with an inert material (dirt / sand / concrete).

The area of the basic fortified structure is approximately 84 SqM. (net) and can contain varying numbers of vehicles according to their size.

Hammer, a Security Product by Mifram: Designed to protect command systems and vital vehicles and equipmentDesigned to protect command systems and vital vehicles and equipment
Hammer, a Security Product by Mifram: Placing roof sections, connecting and closing roofPlacing roof sections, connecting and closing roof
Hammer, a Security Product by Mifram: Filling first floor with sandFilling first floor with sand
Hammer, a Security Product by Mifram: Filling roof sections with layers of sand or concrete via a pumpFilling roof sections with layers of sand or concrete via a pump
Hammer, a Security Product by Mifram: The hanger can be provided in sizes and configurations as neededThe hanger can be provided in sizes and configurations as needed
Hammer, a Security Product by Mifram: The basic hanger can accommodate many vehicles and equipment including ammunition, sensitive equipment and moreThe basic hanger can accommodate many vehicles and equipment including ammunition, sensitive equipment and more

Advantages

  • The optimum solution for fortifying staging areas, troop concentrations and temporary command posts
  • Protection from the elements
  • Can be dismantled, moved and reused
  • Is available in a variety of sizes.
  • Vehicle configuration: the internal area has an especially high, five meter ceiling suitable for tall vehicles and command vehicles.
  • Modular
  • The structure is constructed according to the needs and demands of the client and can be supplied in any size

Solutions for many threat scenarios

  • Small-arms fire – up to and including 0.5 in.
  • Hand grenades shrapnel and artillery shells
  • Bomb and missile blast – based on relative threat
  • Direct hit by RPG 7 (excluding liner)
  • Direct hit and near miss by mortar – up to and including 120 mm.
  • Direct hit and near miss by rocket – up to and including 122 mm.
  • Near miss from car bomb with 2.5 tons of explosive (!).

Simple and easy construction process

  1. Fast preparation and leveling of the area prior to the structure’s erection.
  2. Positioning of structure’s sections, strengthened at the ground floor level (the basic units is a combination of 29 fortified elements (22 20-foot units and seven 40-foot units).
  3. Filling units with dirt/sand/concrete through a roof opening.
  4. Placement of roof elements, connecting and closing roof.
  5. Filling roof elements with a 50 cm. layer of concrete (alternatively a 100 cm. sand layer) via roof openings.

Equipment needed for construction

  • Crane truck / medium sized mobile crane (80 tons)
  • Tractor / Power Shovel / Digger + locally available soil, sand or gravel.
  • Alternatively “Big Bags” for filling with soil/ sand pump / and installed in the sections using the crane.
  • After use, the sections can be removed behind the lines, without heavy cranes, for reuse.

Hanger dimensions – Net
Length12 m.
Width7 m.
Height2.5/2.9 m.
Area84 SqM.

Hanger dimensions – Gross
Length17 m.
Width12 m.
Height5/6 m.
Weight~60 t.
