Protective Wall

A modular protection system made from galvanized steel plates with internal supports and filled with sand.

PATENT PENDING
Tested and approved by the United States Army and UN forces
Cat. No. BMFR-112

The system can be supplied in different sizes and configurations for use in a wide variety of purposes and scenarios.

Simple and easy manual assembly, no tools necessary.

The system consists of easy to assemble and dismantable galvanized steel panels.

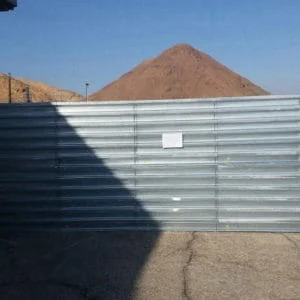

Defense Wall, a Security Product by Mifram: External view

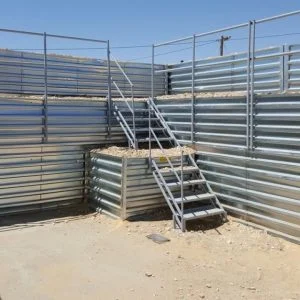

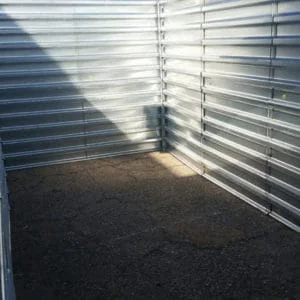

Defense Wall, a Security Product by Mifram: View from the inside
Defense Wall, a Security Product by Mifram: View from the insideView from the inside
Defense Wall, a Security Product by Mifram: Set up by IDF soldiers
Defense Wall, a Security Product by Mifram: Construction of a spiral shaped protected area. All construction uses protective wall elements including the entrance, roof, observation and guard posts.Construction of a spiral shaped protected area. All construction uses protective wall elements including the entrance, roof, observation and guard posts.
Defense Wall, a Security Product by Mifram: Protection for helicopters and landing padsProtection for helicopters and landing pads
Defense Wall, a Security Product by Mifram: Protection for armored assault and other vehicles including munitions trucksProtection for armored assault and other vehicles including munitions trucks

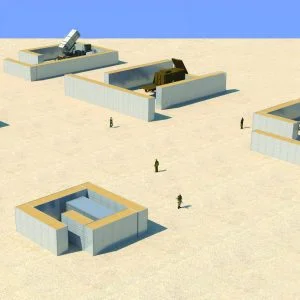

Defense Wall, a Security Product by Mifram: Protection for missile batteries and launchers, gun emplacements and ammunitionProtection for missile batteries and launchers, gun emplacements and ammunition

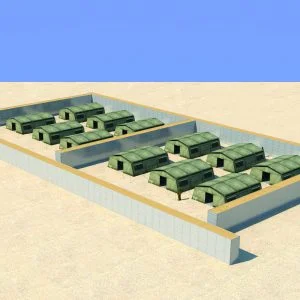

Defense Wall, a Security Product by Mifram: Protection for troop and manpower concentrationsProtection for troop and manpower concentrations

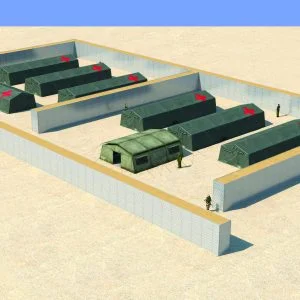

Defense Wall, a Security Product by Mifram: Protection for divisional bases and field hospitalsProtection for divisional bases and field hospitals

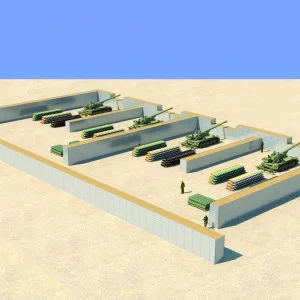

Defense Wall, a Security Product by Mifram: Protection for rocket launchers, artillery and ammunitionProtection for rocket launchers, artillery and ammunition

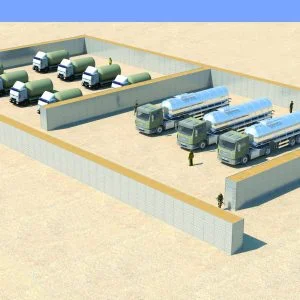

Defense Wall, a Security Product by Mifram: Protection for fuel, water, ammunition storage and other facilitiesProtection for fuel, water, ammunition storage and other facilities
Defense Wall, a Security Product by Mifram: Front line bases and mobile command post protectionFront line bases and mobile command post protection

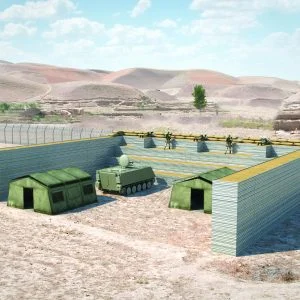

Defense Wall, a Security Product by Mifram: Universal fighting and protective post in the field can be assembled or dismantled in a matter of hoursUniversal fighting and protective post in the field can be assembled or dismantled in a matter of hours
Defense Wall, a Security Product by Mifram: Universal fighting and protective post in the field Can be erected or dismantled in a matter of hours CatUniversal fighting and protective post in the field Can be erected or dismantled in a matter of hours Cat

Advantages

Wall sections are provided in a variety of thicknesses making the system suitable for protection, both at the front line and in civilian areas.

The filling material can be sand, gravel or any other readily available, inert material. Only the light, steel sheets must be transported to the site.

Assembly is simple and easy – the system consists of galvanized steel panels that are easy to assemble and disassemble.

The system can be used to create fences and partitions up to 5 m. high without the need for a wide base. If needed, wall sections are easily dismantled and moved to a new location for reuse.

Protection and concealment of installations, infrastructures and equipment

Defense Wall, a Security Product by Mifram: Hangar for vehicles, tanks, armored cars, equipment - easily dismantableHangar for vehicles, tanks, armored cars, equipment - easily dismantable
Defense Wall, a Security Product by Mifram: Protection for military bases, staging areas, high-value facilities etc.Protection for military bases, staging areas, high-value facilities etc.

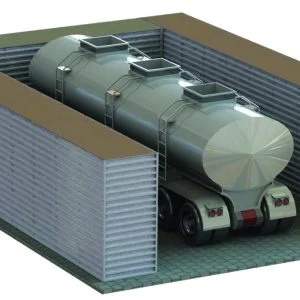

Defense Wall, a Security Product by Mifram: Protection for containers containing liquids and hazardous materialsProtection for containers containing liquids and hazardous materials
Defense Wall, a Security Product by Mifram: Concealing and protecting infrastructure and high risk highwaysConcealing and protecting infrastructure and high risk highways

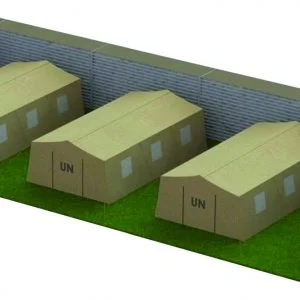

Defense Wall, a Security Product by Mifram: Troop concentrations, tent barracks, containers with sensitive materials etc.Troop concentrations, tent barracks, containers with sensitive materials etc.
Defense Wall, a Security Product by Mifram: Adding protection and concealment for threatened infrastructures and roadsAdding protection and concealment for threatened infrastructures and roads

The system was successfully tested against the following threats:

  • Petrol bombs and stones
  • Light weapons fire – up to and including 0.5 in.
  • Heavy shrapnel and hand grenades
  • Direct hit and near miss from mortar shells up to and including 120 mm
  • Blast from aerial explosions and missiles according to specified threats.
  • Nearby detonation of car bomb with 2.5 tons (!) of explosives

Threat assessments and specification determines the required wall thickness.

Civilian Use

Detachable sealed fence that can be assembled quickly and effectively on site with available manpower and no tools. Used to conceal and isolate:

  • Fires
  • Floods
  • Acoustic insulation
  • Blocking line of site and observation
  • Hostile vehicles
  • Kidnappers
  • thieves, burglars
  • And more…

Simple and Easy Construction

Tools needed for assembly:

  • Truck or light-truck to transport the various sections.
  • Assembly team – 3 – 4 workers
  • Digger/Mechanical shovel/Big Bag
Defense Wall, a Security Product by Mifram: Construction using a Big-BagUsing a Big-Bag
Defense Wall, a Security Product by Mifram: Construction using a tractorUsing a tractor

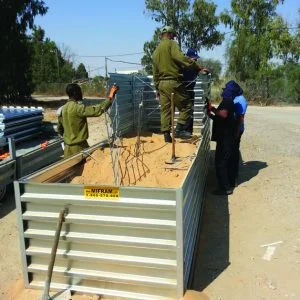

Defense Wall, a Security Product by Mifram: Construction requires no skilled laborRequires no skilled labor

References in the world media

A letter dated 17 April 2017 from the Securetary General addressed to the President Of The Security Council



The galvanized metal is resistant against:

  • Extreme weather conditions
  • Sand storms
  • UV radiation
  • Impacts
  • Knives
  • Corrosion
  • Floods
  • Intensive fires
  • And more.

Protective wall used internationally:

The protective wall system was, amongst other contracts, was awarded a multi-year tender to protect UN bases across the globe from a range of threats. Mifram protects UN forward bases and installations in Israel and conflict areas using barriers and road blocks, protective equipment and protective walls.

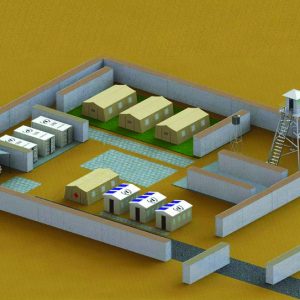

Defense Wall, a Security Product by Mifram: used by the United Nations



Modular Defense Wall:

Infinite length, Height from 1m to 5 m.

Defense Wall, a Security Product by Mifram: 1 m. Height Defense Wall, a Security Product by Mifram: 2 m. Height Defense Wall, a Security Product by Mifram: 3 m. Height



The protective wall can be supplied in different dimensions

Length: multiples of 1.25 m.

Height: 1 m. up to 5 m.

Dimensions
length~1.25 m. / ~2.5 m. / ~3.75 m. / ~5 m. / etc.
width~1.44 m.
height~1 m / ~2 m / ~3 m / ~4 m / ~5 m.

~1.25 x ~1.44 x ~1 m.

Defense Wall, a Security Product by Mifram: ~1.25 m. Length x ~1.44 m. Width x ~1 m. Height



~2.5 x ~1.44 x ~1 m.

Defense Wall, a Security Product by Mifram: ~2.5 m. Length x ~1.44 m. Width x ~1 m. Height



~5 x ~1.44 x ~1 m.

Defense Wall, a Security Product by Mifram: ~5 m. Length x ~1.44 m. Width x ~1 m. Height



~5 x ~1.44 x ~2 m.

Defense Wall, a Security Product by Mifram: ~5 m. Length x ~1.44 m. Width x ~2 m. Height



~5 x ~1.44 x ~3 m.

Defense Wall, a Security Product by Mifram: ~5 m. Length x ~1.44 m. Width x ~3 m. Height
